RVVP型铜芯屏蔽软电缆
本产品适用于交流额定电压U0/U为300/300V及以下电器、仪表、电子设备及自动化装置,作有屏蔽要求的布线连接。 执行标准:JB/T 8734.5-2016、Q/321001LLD 03-2017
产品亮点
  • 产品概述
  • 产品特点
本产品适用于交流额定电压U0/U为300/300V及以下电器、仪表、电子设备及自动化装置,作有屏蔽要求的布线连接。 执行标准:JB/T 8734.5-2016、Q/321001LLD 03-2017

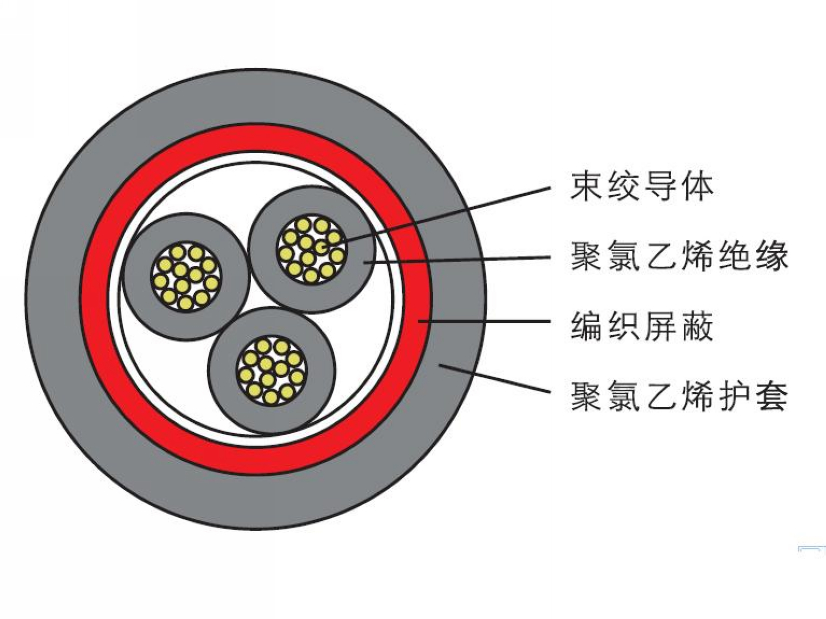

1、电缆长期使用温度为-15℃~70℃。 2、电缆敷设温度不低于0℃,特殊使用温度可定做。 3、导体:99.996%无氧软铜丝。 4、绝缘:70℃国标聚氯乙烯。 5、屏蔽层:99.996%无氧软铜丝编织,编织密度60%~80%。 6、护套:70℃国标聚氯乙烯。
产品参数

RVVP型300/300V铜芯聚氯乙烯绝缘屏蔽聚氯乙烯护套软电缆

执行标准:JB/T 8734.5-2016

芯数×标称面

mm²

绝缘厚度mm

护套

厚度mm

平均外径或外形尺寸

mm

20℃时导体电阻

最大值

Ω/km

70℃时绝缘电阻

最小值

MΩ·km

下限

上限

铜芯

镀锡铜芯


1×0.08

0.4

0.4

2.4

2.9

247

254

0.019

1×0.12

0.4

0.4

2.4

3.0

158

163

0.016

1×0.2

0.4

0.4

2.6

3.2

92.3

95.0

0.013

1×0.3

0.5

0.4

2.9

3.5

69.2

71.2

0.014

1×0.4

0.5

0.4

3.0

3.7

48.2

49.6

0.012

1×0.5

0.5

0.4

3.1

3.8

39.0

40.1

0.012

1×0.75

0.5

0.4

3.4

4.1

26.0

26.7

0.010

1×1.0

0.6

0.6

4.1

4.9

19.5

20.0

0.011

1×1.5

0.6

0.6

4.3

5.2

13.3

13.7

0.0094

2.5

0.7

0.6

4.9

6.0

7.98

8.21

0.0086

2×0.08

0.4

0.4

3.2
2.4×3.5

4.2
2.9×4.2

247

254

0.019

2×0.12

0.4

0.6

3.7
2.8×4.0

4.9
3.4×4.9

158

163

0.016

2×0.2

0.4

0.6

4.1
3.0×4.4

5.3
3.6×5.3

92.3

95.0

0.013

2×0.3

0.5

0.6

4.8
3.5×5.1

6.2
4.2×6.2

69.2

71.2

0.014

2×0.4

0.5

0.6

5.1
3.6×5.4

6.6
4.4×6.6

48.2

49.6

0.012

2×0.5

0.5

0.6

5.3
3.7×5.6

6.8
4.5×6.8

39.0

40.1

0.012

2×0.75

0.5

0.6

5.8
4.0×6.1

7.4
4.8×7.4

26.0

26.7

0.010

2×1.0

0.6

0.6

6.4
4.3×6.7

8.2
5.2×8.3

19.5

20.2

0.011

2×1.5

0.6

0.8

7.3
4.9×7.6

9.2
6.0×9.3

13.3

13.7

0.0094

2×2.5

0.7

1.0

8.8

11.7

7.98

8.21

0.0086

2×4.0

0.8

1.2

10.6

13.9

4.95

5.09

0.0079

3×0.12

0.4

0.6

3.9

5.1

158

163

0.016

3×0.2

0.4

0.6

4.5

5.8

92.3

95.0

0.013

3×0.3

0.5

0.6

5.1

6.5

69.2

71.2

0.014

3×0.4

0.5

0.6

5.4

6.9

48.2

49.6

0.012

3×0.5

0.5

0.6

5.6

7.1

39.0

40.1

0.012

3×0.75

0.5

0.6

6.1

7.8

26.0

26.7

0.010

3×1.0

0.6

0.8

7.2

9.1

19.5

20.0

0.011

3×1.5

0.6

0.8

8.0

10.0

13.3

13.7

0.0094

3×2.5

0.7

1.0

9.5

12.6

7.98

8.21

0.0086

4×0.12

0.4

0.6

4.5

5.8

158

163

0.016

4×0.2

0.4

0.6

4.9

6.2

92.3

95.0

0.013

4×0.3

0.5

0.6

5.5

7.0

69.2

71.2

0.014

4×0.4

0.5

0.6

5.9

7.5

48.2

49.6

0.012

4×0.5

0.5

0.8

6.5

8.9

39.0

40.1

0.012

4×0.75

0.6

0.8

6.8

9.3

26.0

26.7

0.010

4×1.0

0.6

0.9

7.7

9.7

19.5

20.0

0.011

4×1.5

0.6

0.9

8.4

11.5

13.3

13.7

0.0094

4×2.5

0.7

1.0

10.1

13.6

7.98

8.21

0.0086

5×0.12

0.4

0.6

4.8

6.2

158

163

0.016

5×0.2

0.4

0.6

5.3

6.7

92.3

95.0

0.013

5×0.3

0.5

0.6

6.0

7.6

69.2

71.2

0.014

5×0.4

0.5

0.6

6.4

8.1

48.2

49.6

0.012

5×0.5

0.5

0.8

7.0

9.5

39.0

40.1

0.012

5×0.75

0.5

0.8

7.4

10.0

26.0

26.7

0.010

5×1.0

0.6

0.9

8.5

11.3

19.5

20.0

0.011

5×1.5

0.6

1.0

9.6

12.6

13.3

13.7

0.0094

5×2.5

0.7

1.1

11.5

14.9

7.98

8.21

0.0086

6~7×0.12

0.4

0.6

5.2

6.6

158

163

0.016

6~7×0.2

0.4

0.6

5.7

7.2

92.3

95.0

0.013

6~7×0.3

0.5

0.6

6.5

8.2

69.2

71.2

0.014

6~7×0.4

0.5

0.8

7.3

9.2

48.2

49.6

0.012

6~7×0.5

0.5

0.8

7.6

10.2

39.0

40.1

0.012

6~7×0.75

0.5

0.8

8.0

10.7

26.0

26.7

0.010

6~7×1.0

0.6

1.0

9.4

12.4

19.5

20.0

0.011

6~7×1.5

0.6

1.0

10.4

13.6

13.3

13.7

0.0094

6~7×2.5

0.7

1.1

12.4

16.1

7.98

8.21

0.0086

8×0.12

0.4

0.6

5.7

7.3

158

163

0.016

8×0.2

0.4

0.6

6.3

7.9

92.3

95.0

0.013

8×0.3

0.5

0.6

7.2

9.1

69.2

71.2

0.014

8×0.4

0.5

0.8

8.1

10.1

48.2

49.6

0.012

8×0.5

0.5

0.8

8.4

11.2

39.0

40.1

0.012

8×0.75

0.5

0.8

8.9

11.8

26.0

26.7

0.010

8×1.0

0.6

1.0

10.5

13.7

19.5

20.0

0.011

8×1.5

0.6

1.0

11.5

15.0

13.3

13.7

0.0094

8×2.5

0.7

1.2

14.1

18

7.98

8.21

0.0086

9×0.12

0.4

0.6

6.1

7.8

158

163

0.016

9×0.2

0.4

0.8

7.1

9.0

92.3

95.0

0.013

9×0.3

0.5

0.8

8.2

10.2

69.2

71.2

0.014

9×0.4

0.5

0.8

8.7

10.9

48.2

49.6

0.012

9×0.5

0.5

0.8

9.1

12.0

39.0

40.1

0.012

9×0.75

0.5

0.8

9.6

12.7

26.0

26.7

0.010

9×1.0

0.6

1.0

11.5

15.0

19.5

20.0

0.011

9×1.5

0.6

1.0

12.4

16.1

13.3

13.7

0.0094

9×2.5

0.7

1.2

15.2

19.4

7.98

8.21

0.0086

10×0.12

0.4

0.6

6.4

8.1

158

163

0.016

10×0.2

0.4

0.8

7.4

9.3

92.3

95.0

0.013

10×0.3

0.5

0.8

8.7

10.9

69.2

71.2

0.014

10×0.4

0.5

0.8

9.3

11.6

48.2

49.6

0.012

10×0.5

0.5

0.9

9.9

13.0

39.0

40.1

0.012

10×0.75

0.5

1.0

10.6

13.9

26.0

26.7

0.010

10×1.0

0.6

1.0

12

15.5

19.5

20.0

0.011

10×1.5

0.6

1.1

13.1

16.9

13.3

13.7

0.0094

10×2.5

0.7

1.2

15.8

20.2

7.98

8.21

0.0086

12×0.12

0.4

0.6

6.6

8.3

158

163

0.016

12×0.2

0.4

0.8

7.6

9.6

92.3

95.0

0.013

12×0.3

0.5

0.8

9.0

11.2

69.2

71.2

0.014

12×0.4

0.5

0.8

9.6

11.9

48.2

49.6

0.012

12×0.5

0.5

0.9

10.2

13.4

39.0

40.1

0.012

12×0.75

0.5

1.0

11.0

14.3

26.0

26.7

0.010

12×1.0

0.6

1.0

12.4

16.0

19.5

20.0

0.011

12×1.5

0.6

1.2

13.7

17.7

13.3

13.7

0.0094

12×2.5

0.7

1.4

16.7

21.3

7.98

8.21

0.0086

14×0.12

0.4

0.8

7.2

9.1

158

163

0.016

14×0.2

0.4

0.8

8.2

10.3

92.3

95.0

0.013

14×0.3

0.5

0.8

9.4

11.7

69.2

71.2

0.014

14×0.4

0.5

0.8

10.0

12.5

48.2

49.6

0.012

16×0.12

0.4

0.8

7.6

9.5

158

163

0.016

16×0.2

0.4

0.8

8.6

10.8

92.3

95.0

0.013

16×0.3

0.5

0.8

9.9

12.3

69.2

71.2

0.014

16×0.4

0.5

0.8

10.5

13.1

48.2

49.6

0.012

16×0.5

0.5

1.0

11.4

14.8

39.0

40.1

0.012

16×0.75

0.5

1.2

12.4

16.1

26.0

26.7

0.010

16×1.0

0.6

1.2

14.0

18.0

19.5

20.0

0.011

16×1.5

0.6

1.2

15.1

19.4

13.3

13.7

0.0094

16×2.5

0.7

1.4

18.5

23.4

7.98

8.21

0.0086

19×0.12

0.4

0.8

8.2

10.3

158

163

0.016

19×0.2

0.4

0.8

9.0

11.3

92.3

95.0

0.013

19×0.3

0.5

0.8

10.4

12.9

69.2

71.2

0.014

19×0.4

0.5

1.0

11.5

14.2

48.2

49.6

0.012

20×0.12

0.4

0.8

8.6

10.7

158

163

0.016

20×0.2

0.4

0.8

9.5

11.8

92.3

95.0

0.013

20×0.3

0.5

0.8

10.9

13.5

69.2

71.2

0.014

20×0.4

0.5

1.0

12.0

14.9

48.2

49.6

0.012

20×0.5

0.5

1.0

12.6

16.2

39.0

40.1

0.012

24×0.12

0.4

0.8

9.4

11.7

158

163

0.016

24×0.2

0.4

0.8

10.4

12.9

92.3

95.0

0.013

24×0.3

0.5

1.0

12.4

14.4

69.2

71.2

0.014

24×0.4

0.5

1.0

13.2

16.4

48.2

49.6

0.012

24×0.12

0.4

0.8

9.4

11.7

158

163

0.016

26×0.2

0.4

0.8

10.4

12.9

92.3

95.0

0.013

26×0.3

0.5

1.0

12.4

15.2

69.2

71.2

0.014

26×0.4

0.5

1.0

13.2

16.4

48.2

49.6

0.012

26×0.5

0.5

1.2

14.2

17.5

39.0

40.1

0.012


执行标准:Q/321001LLD 03-2017


芯数×标称面

mm²

绝缘厚度mm

护套

厚度mm

平均外径或外形尺寸

mm

20℃时导体电阻

最大值

Ω/km

70℃时绝缘电阻

最小值

MΩ·km

下限

上限

铜芯

镀锡铜芯


2×2.0

0.7

0.8

8.0

9.0

10.3

10.6

0.009

3×2.0

0.7

0.8

8.3

9.4

10.3

10.6

0.009

4×2.0

0.7

0.8

9.1

11.3

10.3

10.6

0.009

5×2.0

0.7

0.8

10.0

12.9

10.3

10.6

0.009

6×2.0

0.7

1.0

11.4

12.4

10.3

10.6

0.009

7×2.0

0.7

1.0

11.4

12.4

10.3

10.6

0.009

8×2.0

0.7

1.2

12.7

13.8

10.3

10.6

0.009

9×2.0

0.7

1.2

14.0

15.1

10.3

10.6

0.009

10×2.0

0.7

1.2

14.9

16.0

10.3

10.6

0.009

11×0.5

0.5

0.8

9.3

10.4

39.0

40.1

0.0012

11×0.75

0.5

1.0

10.7

11.8

26.0

26.7

0.010

11×1.0

0.6

1.0

12.1

13.2

19.5

20.0

0.010

11×1.5

0.6

1.0

14.0

15.1

13.3

13.7

0.009

11×2.0

0.7

1.2

15.4

16.5

10.3

10.6

0.009

11×2.5

0.8

1.2

17.3

18.4

7.98

8.21

0.009

12×2.0

0.7

1.2

15.4

16.5

10.3

10.6

0.009
